Overview

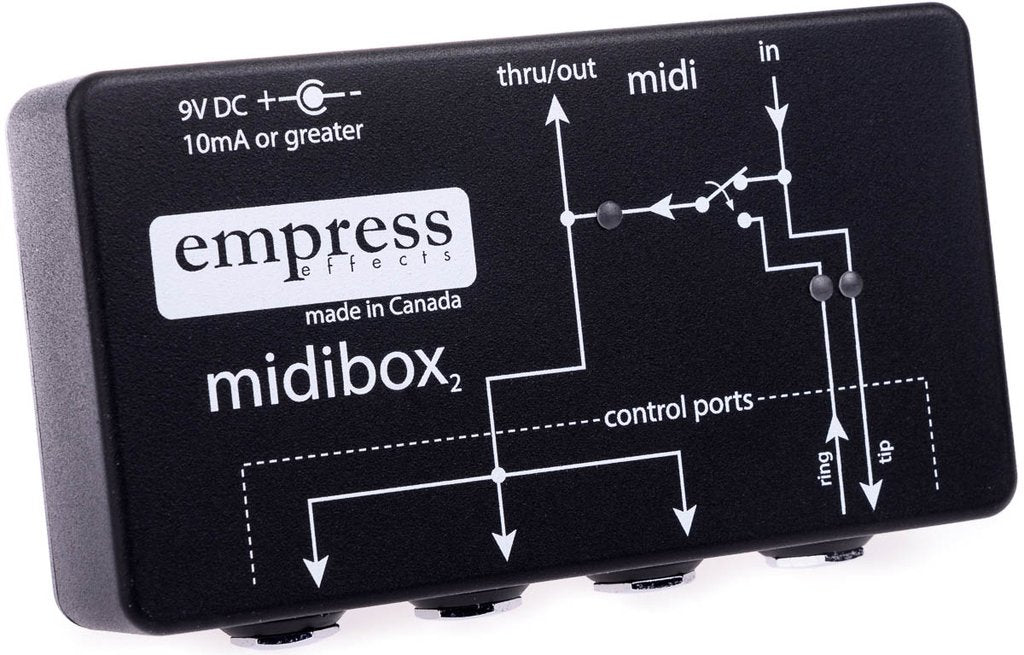

The Midibox2 allows you to connect Empress Pedals equipped with a control port to MIDI. It converts the standard 5 pin MIDI cable to a simple guitar patch cable.
Features
-
Control Empress Pedals with MIDI - Use MIDI to control any Empress pedal equipped with a control port.
-
Control up to 4 pedals at once - The midibox has 4 control port outputs that let you control up to 4 Empress pedals simultaneously.
-
MIDI out - set the internal dip switch to accept midi out messages from the control port and relay them to the other control ports and the midi thru/out connector.
-
LED feedback - LEDs light up, letting you know when and where MIDI messagess are being sent.
Specifications
| Power Input Voltage |
9V DC |
| Power Input Connector |
2.1mm barrel connector (Negative tip) |
| Power Consumption |
~ 30mA |
| Enclosure Material |
Die Cast Aluminum |
| Input connector |
Standard 5 pin MIDI connector |
| Output connector |
1/4" Jack |
| Height |
1.25" |
| Length |
4.5" |
| Width |
2.5" |
| weight |
0.5 lb |
